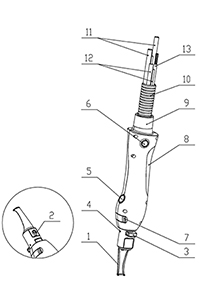

I、Handle Overview
1) Pulse light focusing tip (Transparent plastic)
2) Tip lock
3) 1064nm/532nm exchanger
4) 1064nm/532nm Fixing screw
5) pulsed light Trigger
6) 15-Seconds Safety unlock switch
7) Optical backup plug-in;
8) Latex pad
9) Fixer-(Screw)
10) Casing
11) Water pipe (water inlet, water outlet)
12) Electrode wire of lamp
13) Controlling line of switch

II、Physical Parameters of Handle
1. Work material of pulse light （Bonding Crystal)
2. handle weight≦1.5Kg
3. Length - Width - Height 256mm X 57mm X 47mm
4. Casing length：≧1.5M
5. Water quality requirement：Purified water without water scale；
6. Water temperature：Temperature difference between water and environment is less than 10℃ or water temperature is less than 40℃@6Hz;
7. Water flow：>2L/MIN；
8. Application: 1.Tattto removal，2.Eyebrow removal

III、Optical Parameters of Handle

1） Central wavelength of pulse light is 1064nm
2） Frequency doubling wavelength of pulse light is 532nm;
3） Ouput energy of single pulse>200mJ；
4） 800,000 shots of single pulse;
5） More than 300,000 shots of frequency doubling crystal;
6） Working life of infrared scanning: longer than laser rod;
7） Working life of xenon lamp：more than 1,000,000 shots, According to working life of laser rod is shorter than that of lamp；
8） The smallest spot size is 1.5mm@1/e2；
9） The biggest energy density is 11J/cm2@1/e2；

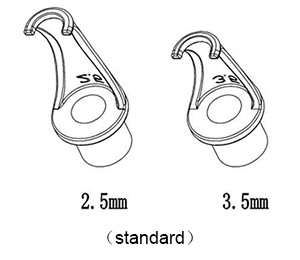

10) Two kinds of output spot（standard）：1.5mm,6.5mm; 2.5mm,3.5mm （Optional）;
11) Half width of pulse：4-7ns；
12) Quality of light beam：M2<1.1；
13) Wavelength of indicating infrared scanning is 650nm；

IV、Electrical Parameters
1） pulse light repetition rate：Single pulse；　
2） pulse light frequency：0.5-6Hz；
3） Charging power：300-500W；
4） Working capacitor：160-200uF；
5） Working voltage：500-600V；
6）Working voltage of indicating infrared scanning：DC 3V

V、 Handle Connection
a) Water connection，two pipes，indiscriminate inlet or outlet；
b) Circuit connection

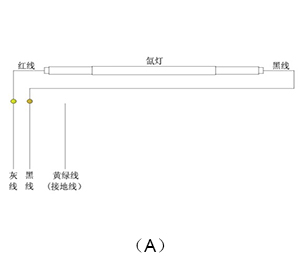

--Xenon lamp connection （ diagram A ）
gray high-voltage cable is positive electrode;
black thin cable is negative electrode;
yellow green cable is earth ground；

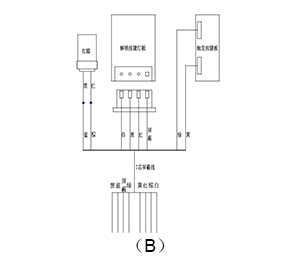

--Infrared cabled （ diagram B ）
within 7 shielded cables，brown is positive electrode，blue is negative
electrodes；
--Cable of safety unlock switch
within 7 shielded cables，white cable is positive electrode，black cable
is negative electrode，combination of black and white is button indicator，
combination of red cable and shielded cable is enabled cable；
--Cable of laser trigger
combination of yellow and green is enabled cable；
