Nd : Ce : YAG

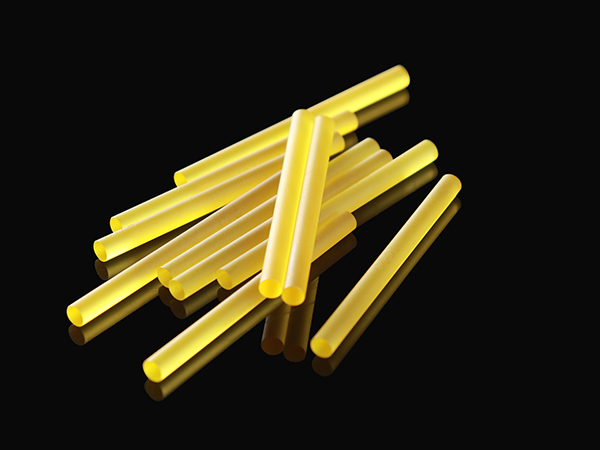

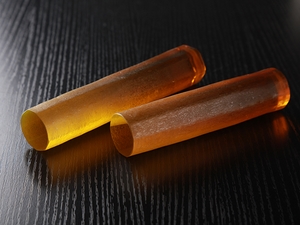

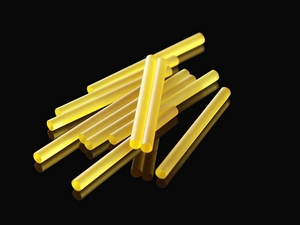

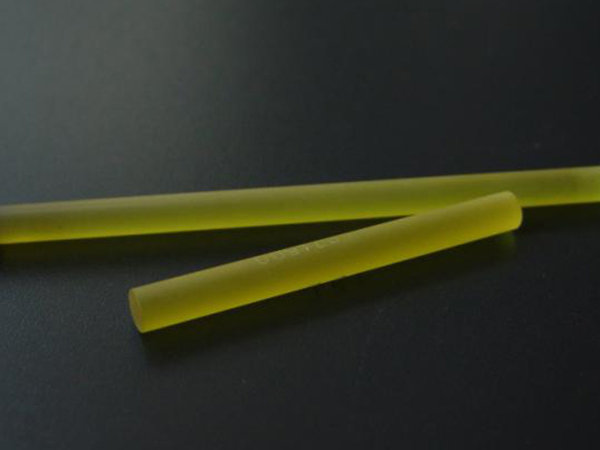

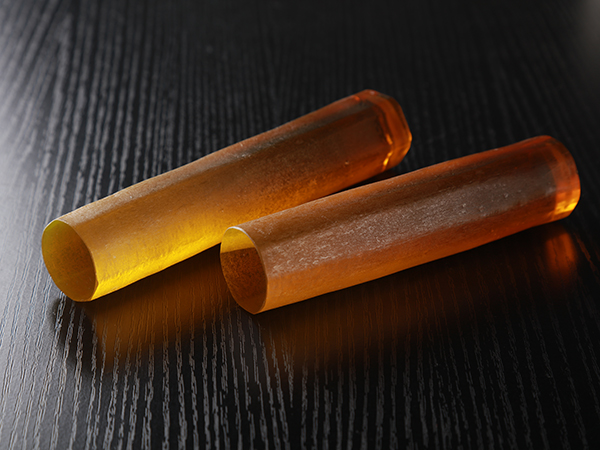

Nd:Ce:YAG crystal is an excellent laser material used for no-water cooling and miniature laser systems. The (Nd, Ce): YAG laser rod we produce has the characteristics of high efficiency, low threshold, anti-violet radiation and high repetition frequency for lasers operation. It has achieved the international advanced level. It is the most ideal laser material for the high repetition air cooling lasers. It suitable for different modes of operation (CW, pulsed , Q-switched, mode locked, doubling of frequency ) and high-average power lasers
Advantages:
1. Low threshold
2. Very high slope efficiency
3. Good thermal stability
4. High optical quality
5. Good anti-UV irradiation property
Application: Laser Rangefinder
Format: Rods, Discs and Slabs
Rod sizes: Diameter: 2- 10mm, Length: 30 - 150mm
Disc sizes: Diameter: 2 - 15mm, Thickness: >= 1mm
Slab sizes: Length: 60 - 150mm, Width: 6 - 15mm, Thickness: 3 - 4mm
Ends: Plane, Brewster, Concave and Convex
Sides: Ground, Polished and Grooved
| Dopant Concentration | Nd:0.9~1.3at%, Ce:Nd=1:10 |
| Orientation | [111] within 5° |
| Wavefront Distortion | ≤ 0.2λ/inch |
| Extinction Ratio | ≥28 dB |
| Rod Sizes | Diameter:3~6mm, length:40~100mm |
| Dimensional Tolerances | Diameter: ±0.05mm, length: ± 0.5mm |
| Barrel finish | Ground finish with 400#or polished |
| Parallelism | ≤10" |
| Perpendicularity | ≤5′ |
| Flatness | λ/10 @632.8nm |
| Surface quality | 10-5(MIL-O-13830A) |
| AR coating Reflectivity | ≤ 0.25% (@1064nm) |
| Damage Threshold | 700MW/cm²10ns 1Hz at 1064nm |
| Laser Wavelength | 1.064μm |
| Emission Linewidth | 4.5Å @1064nm |
| Emission Cross Section (Nd1at%) | 2.7~8.8×10-19cm-2 |
| Fluorescence Lifetime (Nd1at%) | 230μs |
| Index of Refraction | 1.8197@1064nm |
| Lattice Parameters | 12.01 Å |
| Melting Point | 1970℃ |
| Moh Hardness | 8.5 |
| Density | 4.56±0.04g/cm3 |
| Specific Heat (0-20) | 0.59J/g.cm3 |
| Thermal Expansion Coefficient | [111]Direction:7.8×10-6/℃(0~250℃) |
| Thermal Conductivity | 14W/m/K(@20℃) |
| 10.5W/m/K(@100℃) |
