| Picture Name | Descriptions |
| The common laser wavelengths include 266nm, 355nm, 405nm, 468nm, 650nm, 808nm, 980nm, 1064nm, 1319nm, 1550nm, and so forth. All laser coatings of optical windows, mirrors, and lenses make use of dielectric coatings for optimization of transmission and reflection performance at the designated laser wavelength, thus enhancing the damage threshold of laser. They are ideal for various kinds of laser systems. In addition, we also can supply the design of coating according to the requirements of our customers. |

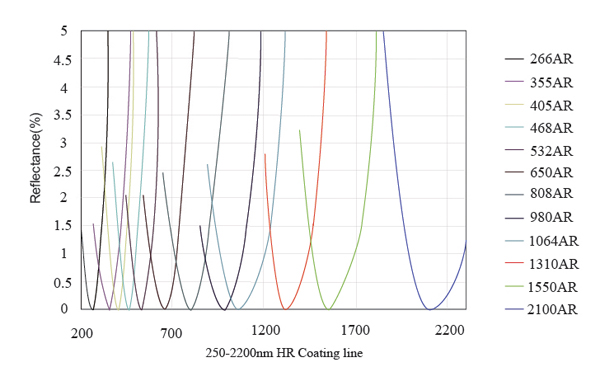

 | 0º AOI AR Coating Single Laser Line |
| Design Wavelength: AR@266nm,AR@355nm, AR@405nm, AR@468nm, |
| AR@532nm,AR@650nm, AR@808nm, AR@980nm, |
| AR@1064nm,AR@1319nm,AR@1550nm, AR@2100nm |
| Reflectance: R<0.02% |

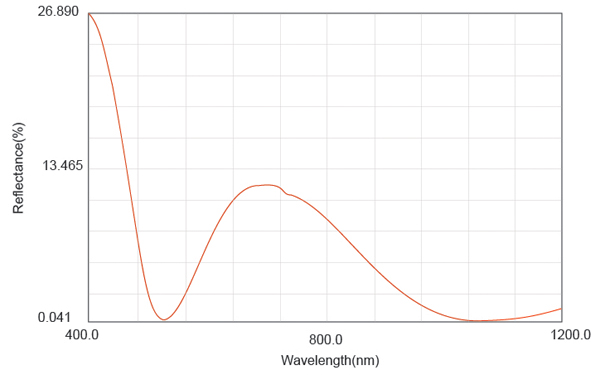

 | 0º AOI AR Coating Dual Laser Line |
| Design Wavelength:AR@532nm&1064nm 1064nm R<0.2%,532nm R<0.5% |

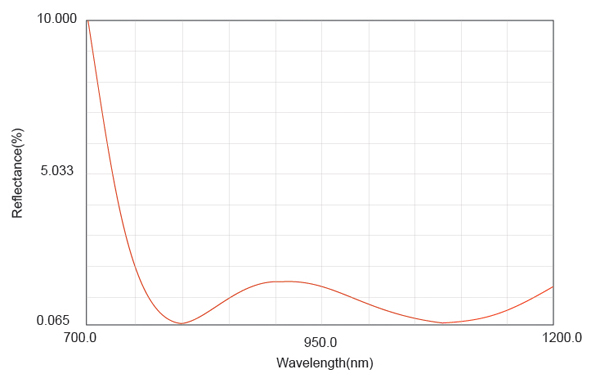

 | 0º AOI AR Coating Dual Laser Line |
| Design Wavelength: AR@808nm&1064nm 1064nm R < 0.2%,808nm R < 0.5% |

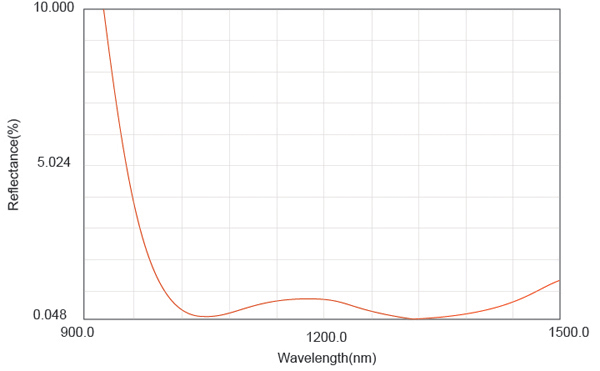

 | 0º AOI AR Coating Dual Laser Line |
| Design Wavelength:AR@1064nm&1319nm 1064nmR<0.2%,1319nm R<0.5% |

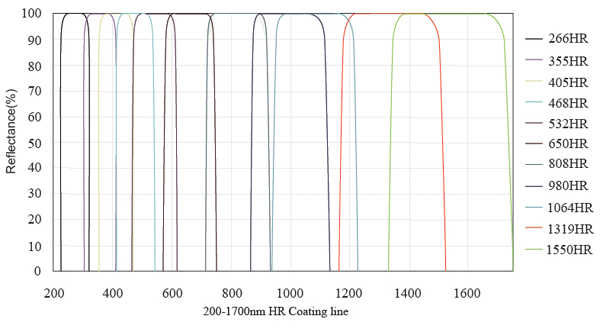

 | 0º~ 45º AOI HR Coating Single Laser Line |
| Design Wavelength: HR@266nm,HR@355nmHR@405nm,HR@468nm, |
| HR@532nm,HR@650nm ,HR@808nm, HR@980nm, |
| HR@1064nm, HR@1319nm,HR@1550nm |
| Reflectance: R>99.9% |
 | 0º AOI HR Coating Dual Laser Line |
| Design Wavelength: HR@532nm&1064nm, HT@808nm |
| 1064nm R>99.8%,532nm R>99.5% |

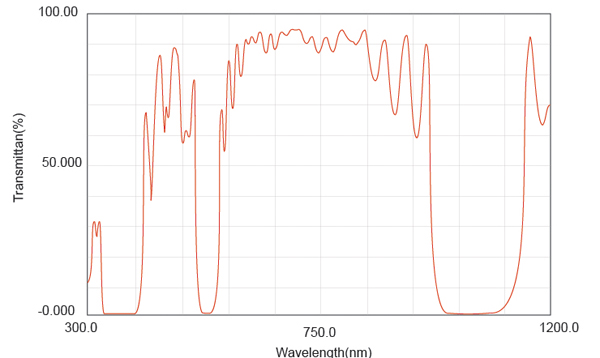

 | 0º AOI HR Coating Three Laser Line |
| Design Wavelength: 355nm&532nm&1064nm |
| 355nm 532nm,1064nm,R>99.5% |

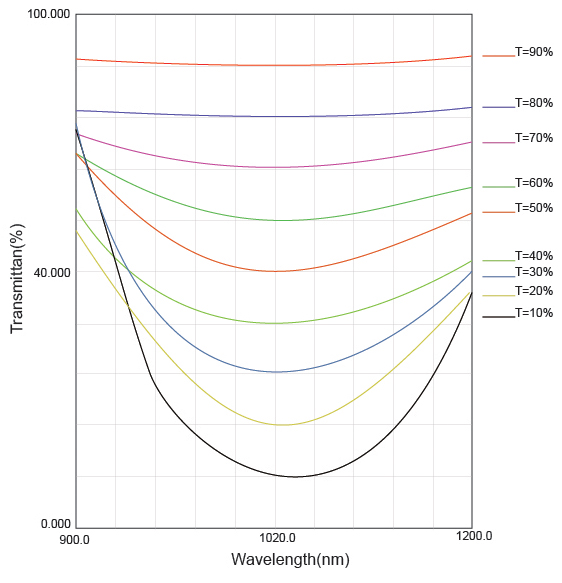

 | 0º AOI PR Coating Single Laser Line Beam Splitter |
| Design Wavelength: PR@1064nm |
| Partial Transmittance: T=5%~95% ±2% |
| As Per Customer Requirements |

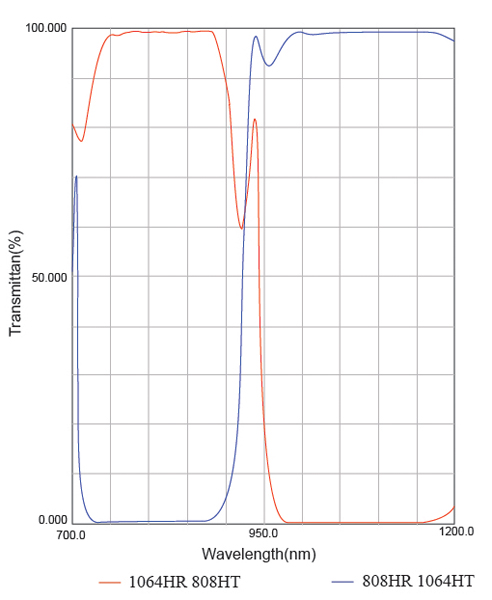

 | 0º AOI Laser Line SHORTPASS, LONGPASS |
| Design Wavelength: HR@1064nm,R>99.8%, |
| HT@808nm T>99% (AR@808nm,both sides) |
| Design Wavelength: HR@808nm,R>99.8, |
| HT@1064nm T>99% (AR@1064nm,both sides) |

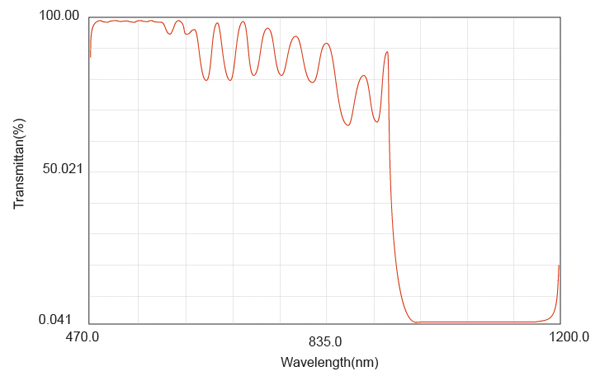

 | 0º AOI Laser Line SHORTPASS |
| Design Wavelength: HR@1064nm,R>99.8%, |
| HT@532nm T>98% (AR@532nm,both sides) |

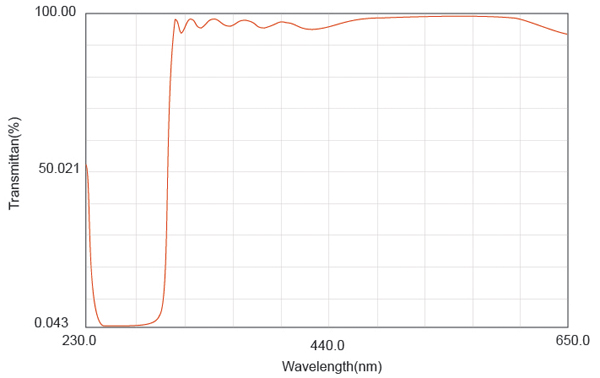

 | 0º AOI Laser Line LONGPASS |
| Design Wavelength: HR@266nm ,R>99.9%, |
| HT@532nm T>99% (AR@532nm,both sides) |

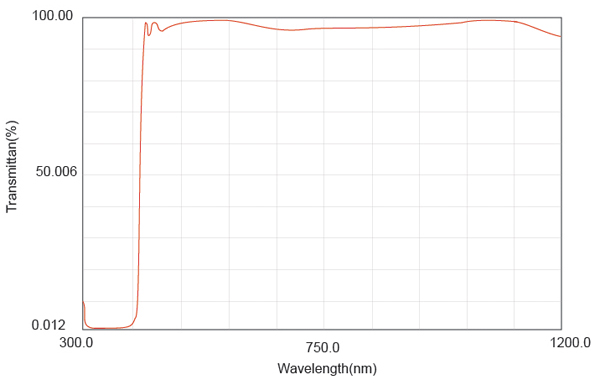

 | 0º AOI Laser Line LONGPASS |
| Design Wavelength: HR@355nm,R>99.8%, |
| HT@532nm&@1064nm T>98% |
| (AR@1064nm,AR@532nm,both sides) |

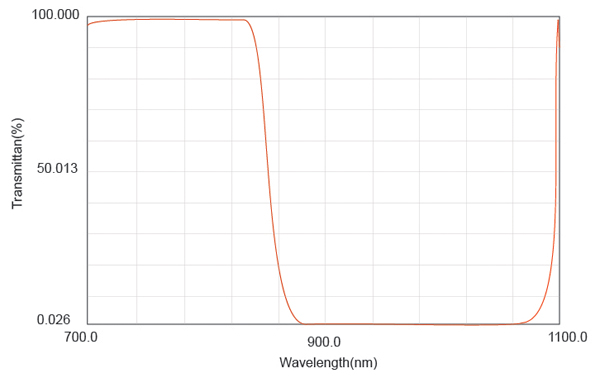

 | 0º AOI Laser Line SHORTPASS |
| Design Wavelength: HR@946nm ,R>99.8%, |
| HT@810nm, T>99% (AR@810nm,both sides) |
