Elaborately produced from UV-grade synthetic fused silica, the 1/10λ high precision mirror substrate is characterized by high thermal properties, exceptional purity, as well as excellent environmental durability, thus more ideally fit for rigorous applications. Its surface accuracy reaches the level of 10-5 grade laser substrate. The design of laser mirror is capable of minimizing scattering energy loss by not allowing light to pass through the glass substrate and can be easily access to any optical system.

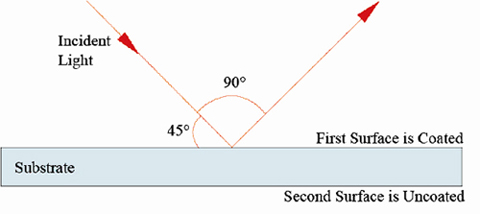

Our company can offer the various kinds of common laser wavelengths, including 266nm, 355nm, 405nm, 468nm, 650nm, 808nm, 980nm, 1064nm, 1319nm, and 1550nm. Laser reflective coating with 0 to 45 degree AOI incident light uses of dielectric coating, featuring high damage threshold and high reflectivity of up to 99.9%. This product is ideal for beam deflection and folding applications. According to customers' requirements, we can design coatings and provide more services for them.
Technical Specifications
Description: Plano/Plano
Material: Fused silica
Diameter Tolerance: +0/-0.1mm
Thickness Tolerance: ±0.1mm
Flatness: λ/10 @632.8nm
Clear Aperture: 90%
Surface Quality: 20-10
Parallelism: <10arc sec
Bevel: <0.25mm x 45 º
Design Wavelength: 587.6nm
Note: The price per run of common single wavelength anti-reflection coating is shown below. However, the actual price will fluctuate frequently due to the influence of size, time, quantity, and exchange rate. If you want to know of the current price, you can contact us immediately. Moreover, please skim through the page of coating film on our website for more information.
| Catalog No. | Diameter (mm) | Thickness (mm) | Price-Uncoated | 0ºHR @ 1064nm One Sides | 45ºHR @ 1064nm One Side | |||||
| 5--10 | 50-100 | 10.0 | 50.0 | 100.0 | 10.0 | 50.0 | 100.0 | |||
| BJP-MHJ-6.0-3 | 6 | 3 | $12.9 | $9.0 | $62.9 | $20.6 | $15.6 | $82.9 | $24.6 | $17.6 |
| BJP-MHJ-10.0-3 | 10 | 3 | $12.9 | $9.0 | $45.2 | $17.1 | $13.9 | $82.9 | $24.6 | $17.6 |
| BJP-MHJ-12. 7-3 | 12.7 | 3 | $15.8 | $11.3 | $48.1 | $19.4 | $16.1 | $85.8 | $26.9 | $19.9 |
| BJP-MHJ-15.0-3 | 15 | 3 | $15.8 | $11.3 | $48.1 | $19.4 | $16.1 | $85.8 | $26.9 | $19.9 |
| BJP-MHJ-15.0-4 | 15 | 4 | $18.9 | $13.5 | $51.1 | $21.6 | $18.4 | $88.9 | $29.2 | $22.2 |
| BJP-MHJ-20.0-4 | 20 | 4 | $22.1 | $15.8 | $54.4 | $23.9 | $20.6 | $92.1 | $31.4 | $24.4 |
| BJP-MHJ-20.0-5 | 20 | 5 | $25.3 | $18.1 | $57.6 | $26.1 | $22.9 | $95.3 | $33.7 | $26.7 |
| BJP-MHJ-25.0-4 | 25 | 5 | $33.2 | $23.7 | $65.5 | $31.8 | $28.5 | $103.2 | $39.3 | $32.3 |
| BJP-MHJ-25.4-4 | 25.4 | 4 | $33.2 | $23.7 | $65.5 | $31.8 | $28.5 | $103.2 | $39.3 | $32.3 |
| BJP-MHJ-30.0-4 | 30 | 4 | $37.9 | $27.1 | $70.2 | $35.2 | $31.9 | $107.9 | $42.7 | $35.7 |
| BJP-MHJ-30.30-4 | 30x30 | 4 | $44.0 | $32.6 | $76.3 | $40.6 | $37.4 | $114.0 | $48.2 | $41.2 |
| BJP-MHJ-40.0-3 | 40 | 3 | $44.0 | $32.6 | $76.3 | $40.6 | $37.4 | $114.0 | $48.2 | $41.2 |
| BJP-MHJ-40.0-4 | 40 | 4 | $49.0 | $37.7 | $81.3 | $45.8 | $42.6 | $119.0 | $53.4 | $46.4 |
| BJP-MHJ-42.0-3 | 42 | 4 | $49.0 | $37.7 | $81.3 | $45.8 | $42.6 | $119.0 | $53.4 | $46.4 |
| BJP-MHJ-48.0-3 | 48 | 4 | $57.3 | $44.0 | $89.5 | $52.1 | $52.1 | $127.3 | $59.6 | $52.6 |
| BJP-MHJ-50.0-4 | 50 | 4 | $65.5 | $50.3 | $97.7 | $58.4 | $58.4 | $135.5 | $65.9 | $58.9 |
| BJP-MHJ-50.8-4 | 50.8 | 4 | $69.5 | $53.5 | $101.8 | $61.6 | $61.6 | $139.5 | $69.2 | $62.2 |
